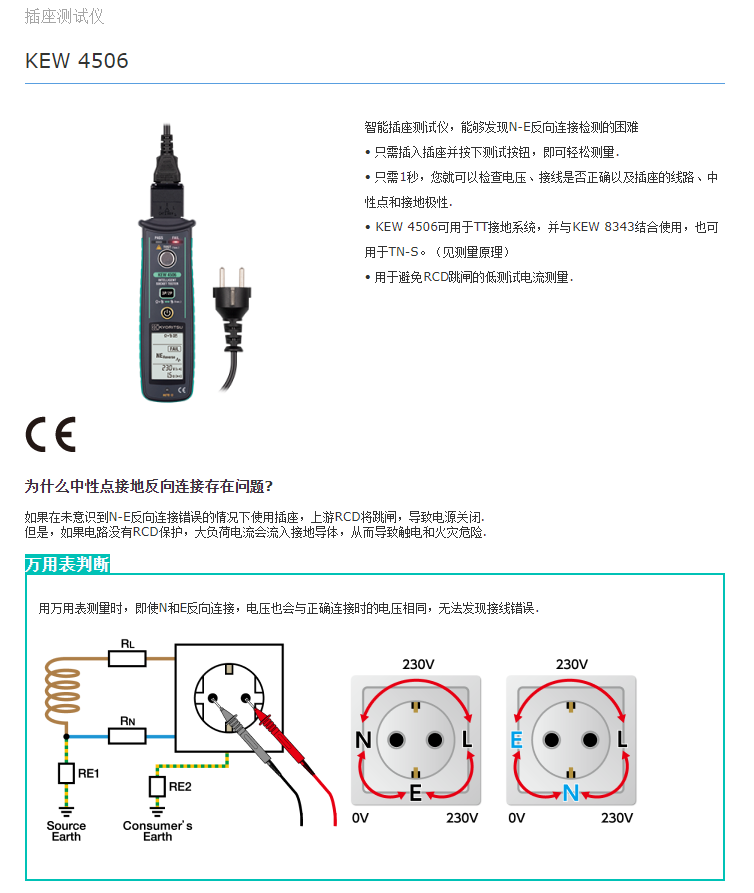

日本共立KEW 4506 插座测试仪
| Socket test *1 | ||||
|---|---|---|---|---|
| Measurable range of power supply voltage |
80V rms to 290V rms (50/60Hz) *The tester gives voltage warning if 253V or higher voltage is detected but it can perform socket test. |
|||

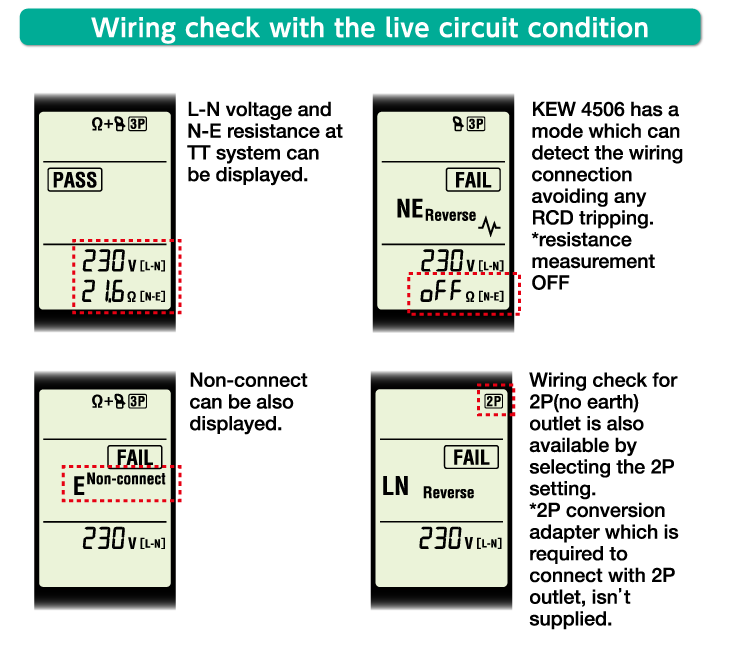

| Socket type | 3 Pole | 2 Pole | ||
| Judgement | PASS | PASS | PASS | |
| FAIL | L-N Reverse | L-N Reverse | ||
| L-E Reverse | Abnormal voltage | |||
| N-E Reverse | – | |||
| E Not connected | – | |||
| N Not connected | – | |||
| N-E unjudgeable | – | |||
| Abnormal voltage | – | |||
| AC V (L-N) | ||||
| Range | 80 to 290V rms (50/60Hz) | |||
| Accuracy | ±2%rdg±4dgt | |||
| Loop resistance (N-E) | ||||
| Range (Auto-ranging) | 200Ω: 0.0 to 199.9Ω 2000Ω: 200 to 1999Ω |
|||
| Test current | 200Ω: 5mA (5.3 Hz) 2000Ω: 1mA (5.3 Hz) |
|||
| Accuracy | ±3%rdg±5dgt | |||
General
| Applicable standards | IEC 61010-1, 61010-2-030 CAT Ⅱ 300V, Pollution degree 2, IEC 60529(IP40) |
|---|---|
| Operating temperature & humidity range | -10 to 50℃, RH 85% or less |
| Storage temperature & humidity range | -20 to 60℃, RH 85% or less |
| Power source | LR6 (AA)(1.5V) × 2 |
| Dimensions | 212(L) × 56(W) × 39(D) mm |
| Weight | Approx. 250g (including batteries) |
| Included Accessories | Test lead with IEC connector *3 9161 (Carrying case) LR6 (AA) × 2, Instruction manual |

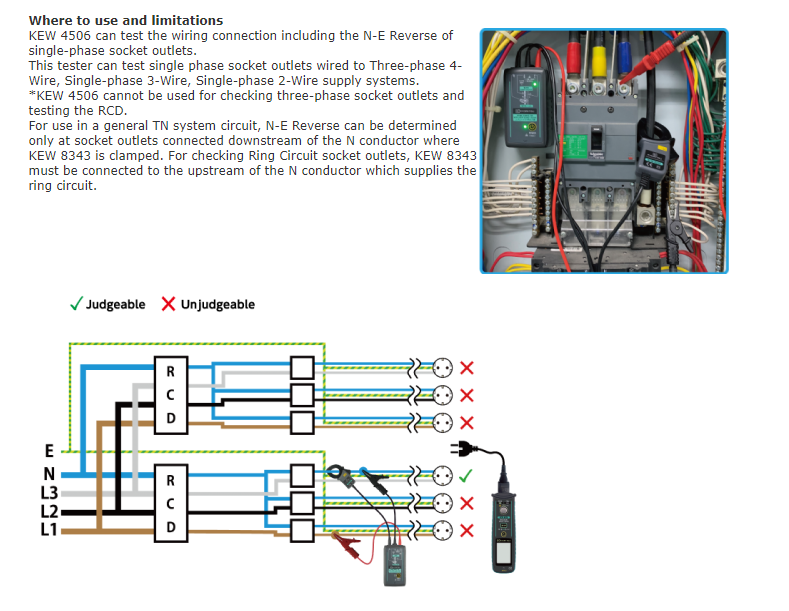

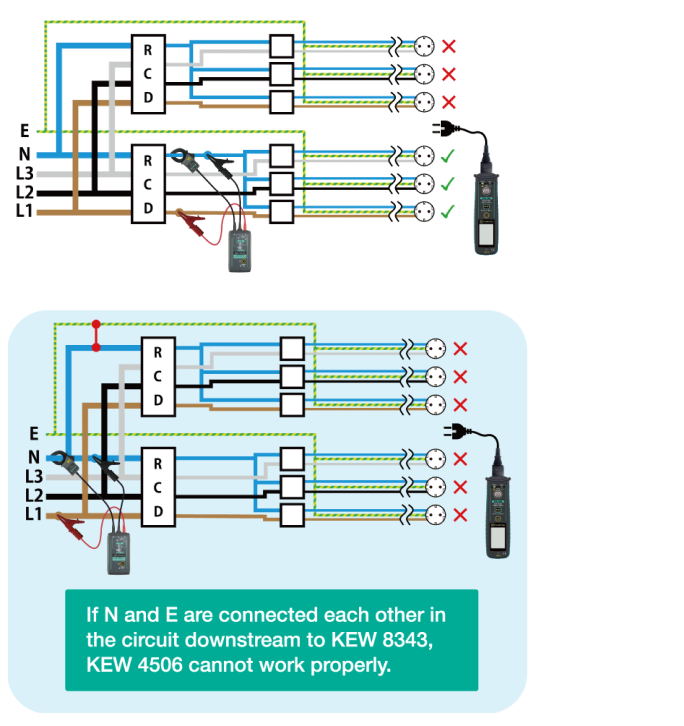

| Optional Accessories | 8343 (Signal Source for Intelligent Socket Tester) |

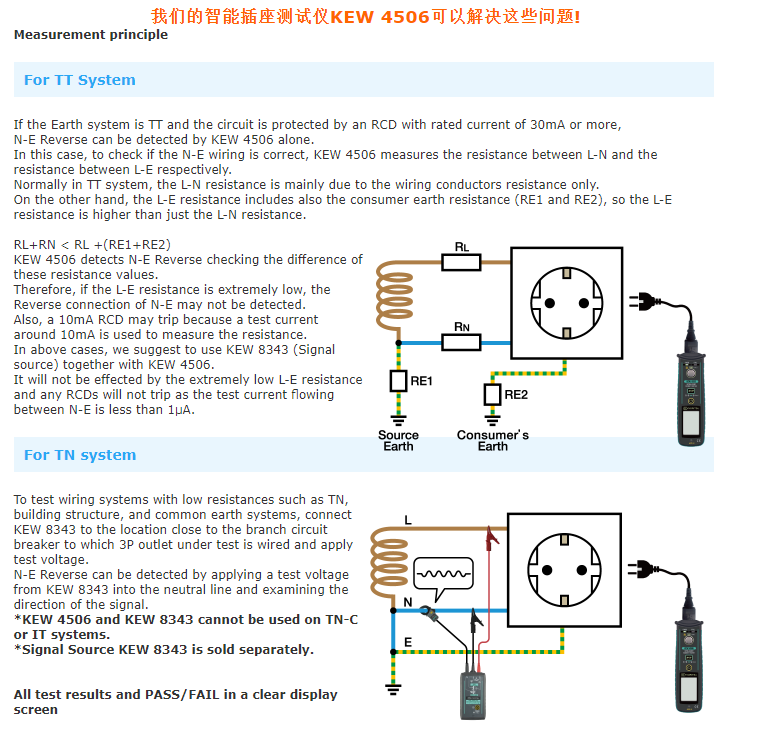

*1 If N-E resistance measurement function is turned off (*2), test is performed with a test voltage applied from an optional
signal source only: current flows between N-E is less than 1µA
*2 If the function is disabled, KEW 4506 doesn’t show resistance between N-E.
*3 KAMP 10(AU): Australian plug / KAMP 10(EU): European SCHUKO plug /
KAMP 10(UK): British plug(13A) / 7284: American(NEMA)plug
