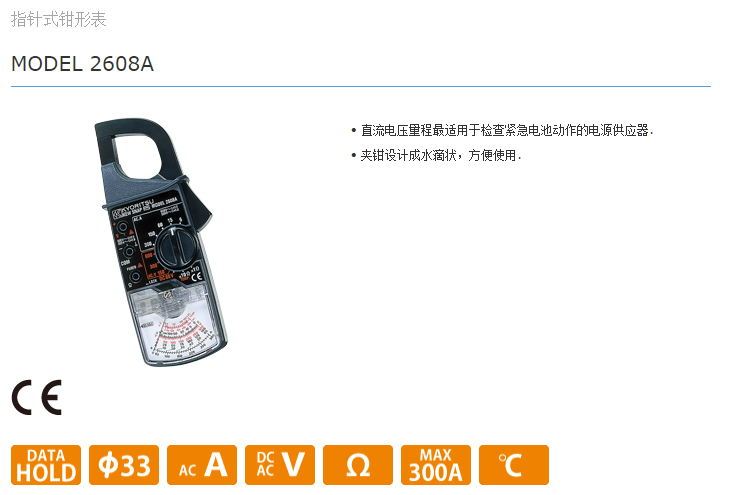

日本共立MODEL 2608A 指针式钳形表

主页 » 钳形电流表 » 日本共立MODEL 2608A 指针式钳形表

AC A	6/15/60/150/300A 最大刻度值的±3%
AC V	150/300/600V 最大刻度值的±3%
DC V	60V 最大刻度值的±3%
Ω	1/10kΩ (中间值 25/250Ω ) 刻度的±2%
Temperature	Note: The MODEL2608A includes a temperature measurement scale, but it is not available for new customers due to the discontinue of the Temperature Probe 7060.
Conductor size	Ø33mm max.
Frequency response	50Hz/60Hz
Applicable standards	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61010-2-032
Power source	R6 (AA) (1.5V) × 1
Dimensions	193(L) × 78(W) × 39(D)mm
Weight	275g approx.
Included Accessories	7066A (Test leads) 8923 (Fuse [0.5A/600V]) × 2 9097 (Carrying case) R6 (AA) × 1 Instruction Manual
